What Is the Purpose of a Hydraulic Motor Flanges?

A hydraulic motor flange provides a secure mounting interface between a hydraulic motor and the equipment it drives. It helps position the motor correctly, supports mechanical loads, and keeps the motor firmly attached to the machine during operation. Choosing the right hydraulic motor flange is important for maintaining stable mounting, reducing alignment problems, and ensuring reliable equipment performance.

Hydraulic motors are widely used in construction machinery, agricultural equipment, industrial production lines, and mobile hydraulic systems. Although the motor itself generates rotary motion, its mounting arrangement plays an important role in how effectively it operates. A properly designed flange helps connect the motor to the surrounding equipment while meeting the mechanical requirements of the application.

In this guide, we’ll look at the main purposes of hydraulic motor flanges, their common components and types, where they are used, and what to consider when selecting one.

What Is a Hydraulic Motor Flange?

A hydraulic motor flange is a mechanical mounting component designed to connect a hydraulic motor to a machine frame, gearbox, pump assembly, or other compatible equipment. It typically features a flat mounting face, bolt holes, and, in some designs, a centering pilot that helps position the motor accurately.

The flange may be integrated into the motor housing or supplied as part of a separate mounting arrangement. Its design depends on the motor model, installation requirements, mounting standard, and loads expected during operation.

Unlike a hydraulic hose flange, which is primarily used to connect fluid-carrying components, a hydraulic motor flange generally serves a mechanical mounting function. Some assemblies may also incorporate sealing features, but the main purpose of the motor flange is to provide a stable and compatible mounting interface.

Hydraulic motor flanges are available in different sizes, materials, and configurations. Selecting a suitable design requires more than matching the outside diameter. Bolt-hole spacing, pilot dimensions, mounting-face geometry, and the manufacturer’s specifications must also be considered.

What Is the Purpose of a Hydraulic Motor Flange?

A hydraulic motor flange does more than hold a motor in place. It contributes to the mechanical stability and overall reliability of the equipment in which the motor is installed.

1. Secure the Hydraulic Motor in Place

One of the main purposes of a hydraulic motor flange is to provide a stable connection between the motor and its mounting structure.

During operation, a hydraulic motor produces torque that drives a shaft or connected mechanical component. Depending on the application, the motor may also experience vibration, reaction forces, and other mechanical loads. A properly designed mounting flange and its fasteners help resist these forces and keep the motor securely attached.

Without a suitable mounting arrangement, the motor may move slightly under load, causing excessive vibration, mounting wear, or damage to nearby components.

The flange must therefore match the motor’s mounting design and the mechanical requirements of the equipment. Correct fastener selection and tightening are equally important for maintaining a secure connection.

2. Maintain Proper Motor Alignment

Correct alignment is another important function of a hydraulic motor flange.

In many applications, the motor connects to a gearbox, coupling, drive shaft, or other rotating component. If these parts are misaligned, the system may experience increased vibration, uneven loading, and premature wear.

Some hydraulic motor flanges include a centering pilot or register. This feature fits into a corresponding recess on the mating component to help position the motor accurately. The mounting bolts then secure the assembly in place.

However, the flange alone does not guarantee correct alignment. The motor, driven component, mounting surfaces, and coupling must all be compatible and installed according to the equipment manufacturer’s instructions.

Proper alignment helps reduce unnecessary mechanical stress and supports smoother equipment operation.

3. Support and Transfer Mechanical Loads

Hydraulic motors can generate substantial torque, particularly in heavy-duty equipment. Their mounting arrangements must be capable of handling the resulting reaction forces and other loads associated with operation.

The hydraulic motor flange provides a structural interface through which these loads are transferred to the mounting structure. The flange body, mounting face, and fasteners work together to maintain the connection.

The loads a flange must withstand depend on several factors, including motor torque, operating conditions, mounting orientation, vibration, and the design of the connected equipment.

For this reason, flange selection should consider the complete mounting arrangement rather than relying on flange dimensions alone. The material, thickness, fastener specifications, and supporting structure may all affect the assembly’s performance.

4. Simplify Installation and Replacement

Hydraulic equipment often needs to be assembled, serviced, or repaired. A compatible flange arrangement can make these tasks more straightforward.

When the motor and mounting structure share a suitable mounting pattern, technicians can install or remove the motor without redesigning the entire connection. Standardized mounting interfaces can also make it easier for equipment manufacturers to use compatible motor models across different machine designs.

For maintenance teams, this can reduce unnecessary downtime and simplify replacement planning.

However, a similar-looking flange does not necessarily guarantee compatibility. Before replacing a motor or flange, technicians should confirm the bolt pattern, centering features, shaft arrangement, mounting dimensions, and any other requirements specified by the manufacturer.

5. Improve Equipment Stability and Reliability

A properly selected and installed hydraulic motor flange helps keep the motor stable under normal operating conditions.

A secure mounting interface can reduce unwanted movement and help prevent problems associated with loose fasteners, damaged mounting surfaces, or incorrect alignment. These benefits are particularly important in mobile equipment and industrial machinery exposed to vibration or changing loads.

The flange itself does not improve the hydraulic motor’s output pressure or flow rate. Instead, it supports the mechanical installation that allows the motor and connected equipment to operate as intended.

Reliable performance depends on the complete assembly, including the motor, mounting structure, fasteners, shaft connection, and any associated seals.

Key Components of a Hydraulic Motor Flange

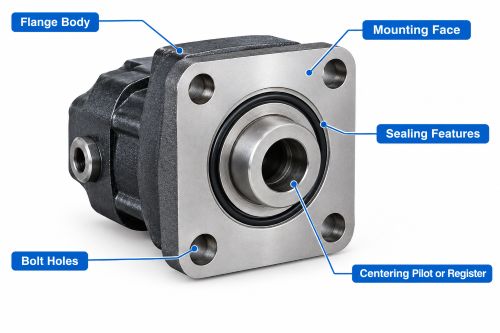

Hydraulic motor flange designs vary by manufacturer and application, but several features are commonly found in these mounting arrangements.

Flange Body

The flange body is the main structural section. It provides the mounting interface and helps transfer mechanical loads between the motor and the supporting equipment.

The body must have sufficient strength and dimensional accuracy for the intended application. Its shape, thickness, and material depend on the motor design and the loads the assembly is expected to handle.

Mounting Face

The mounting face is the surface that contacts the corresponding mounting surface on the motor, gearbox, or equipment.

A flat, correctly machined mounting face helps the components fit together as intended. Dirt, burrs, corrosion, or surface damage can interfere with installation and may cause uneven contact.

Before assembly, the mating surfaces should be inspected and cleaned according to the manufacturer’s recommendations.

Bolt Holes

Bolt holes allow fasteners to secure the flange to the mating component. Their number, diameter, spacing, and arrangement depend on the mounting design.

Common configurations include two-bolt and four-bolt arrangements, although other patterns are available. The bolt pattern must match the corresponding component precisely.

Using the wrong fasteners or forcing mismatched holes into alignment can compromise the mounting connection.

Centering Pilot or Register

Some hydraulic motor flanges include a raised cylindrical pilot or a locating feature designed to fit into a matching recess.

This feature helps position the motor and can improve concentric alignment between the mounting components. It is especially important in applications where accurate positioning of the motor and driven equipment is required.

Not every flange uses a centering pilot, so its presence and dimensions should be checked against the motor specifications.

Sealing Features

Certain mounting arrangements include an O-ring, gasket, or another sealing element. These features help prevent fluid leakage where the design requires a sealed interface.

However, not all hydraulic motor flanges carry hydraulic fluid or provide a fluid seal. In many systems, the flange serves only as a mechanical mounting component, while separate ports and fittings handle fluid connections.

Understanding this distinction helps avoid selecting a flange based on sealing requirements that do not apply to its design.

Common Types of Hydraulic Motor Flanges

Hydraulic motor flanges come in different configurations to accommodate various motors and mounting arrangements. The correct type depends on the equipment design rather than the number of bolts or flange shape alone.

Two-Bolt Mounting Flanges

Two-bolt mounting arrangements use two fasteners to secure the motor to a compatible mounting structure. They are found in certain compact hydraulic motor designs where the specified mounting interface supports this configuration.

When selecting a two-bolt flange, check the distance between the bolt centers, hole dimensions, mounting-face geometry, and any locating features.

Four-Bolt Mounting Flanges

Four-bolt mounting arrangements use four fasteners to secure the mounting interface. They are used in various hydraulic motor designs, depending on the applicable mounting standard and equipment requirements.

A four-bolt configuration should not automatically be considered stronger or interchangeable with another four-bolt design. The bolt pattern, flange dimensions, materials, and load requirements must all be compatible.

SAE-Style Mounting Flanges

SAE specifications are used in hydraulic equipment to define particular interfaces and dimensions. Depending on the product and standard, an SAE designation may refer to a motor mounting interface or a hydraulic fluid connection.

These are not necessarily the same thing. Buyers should confirm the exact SAE standard and mounting specification required by the motor instead of relying on the general term “SAE flange.”

Metric and Manufacturer-Specific Flanges

Some hydraulic motors use metric mounting dimensions or manufacturer-specific configurations. These may be designed for particular motor series, gearboxes, or machine assemblies.

When replacing these flanges, the original technical drawing or motor documentation is often the most reliable reference. Matching only the nominal size may result in an incompatible mounting arrangement.

Where Are Hydraulic Motor Flanges Used?

Hydraulic motor flanges are used wherever hydraulic motors need to be securely mounted to machinery. Their specific design depends on the equipment, operating conditions, and motor configuration.

Construction machinery: Excavators, loaders, and other construction equipment use hydraulic motors in travel drives, swing mechanisms, and auxiliary functions. The mounting flange must be suitable for the mechanical loads and vibration associated with the application.

Agricultural machinery: Tractors, harvesters, and other agricultural machines use hydraulic motors to drive different mechanisms. Compatible flanges help secure motors within equipment that may operate in dusty, wet, or uneven environments.

Industrial hydraulic systems: Manufacturing equipment, production machinery, and material-handling systems use hydraulic motors for controlled rotary motion. Proper mounting helps maintain stability and supports dependable operation during repeated work cycles.

Mobile hydraulic equipment: Utility vehicles and specialized mobile machinery may use hydraulic motors to drive wheels, conveyors, winches, or other mechanisms. Mounting arrangements must accommodate the relevant torque, vibration, and space requirements.

Gearbox and drive assemblies: Hydraulic motors may be connected to gearboxes or other mechanical drive components. A compatible flange helps establish the required mounting interface, while the shaft and coupling arrangements must be matched separately.

Across these applications, the flange must be selected according to the motor and equipment specifications rather than assumed to be universal.

How to Choose the Right Hydraulic Motor Flange

Choosing a suitable hydraulic motor flange starts with identifying the motor and understanding the mounting requirements. The following factors can help engineers, maintenance teams, and purchasing professionals make a more informed decision.

1. Confirm the Motor Model and Mounting Configuration

Start with the motor’s manufacturer, model number, and technical documentation. These details can help identify the correct mounting arrangement and any applicable standards.

If you are replacing an existing flange, compare the original part number and technical drawing whenever possible. A visual inspection alone may not reveal important differences in the mounting geometry.

2. Check the Dimensions and Bolt Pattern

Dimensional compatibility is essential. Depending on the design, you may need to verify:

➡️ Flange outside diameter and thickness

➡️ Bolt-hole number, diameter, and center-to-center spacing

➡️ Centering pilot diameter and depth

➡️ Mounting-face geometry

➡️ Shaft position and clearance requirements

➡️ Overall space available for installation

Even a small dimensional difference can prevent proper installation or affect alignment.

3. Select a Suitable Material

Hydraulic motor flanges may be manufactured from steel, cast iron, aluminum, or other materials appropriate to the design.

Steel is commonly selected where strength and durability are important. Cast iron is used in some motor housings and mounting components because of its mechanical properties and suitability for particular equipment designs. Aluminum may be chosen where lower weight is beneficial.

The best material depends on the flange’s structural requirements, operating environment, corrosion exposure, and the manufacturer’s design. A material should not be selected on weight or cost alone.

4. Consider Mechanical Loads and Operating Conditions

The flange and mounting assembly must be suitable for the motor’s operating torque and the loads transmitted through the connection.

Consider the application, mounting orientation, vibration, shock loads, and duty cycle. Heavy-duty mobile equipment may have different mounting requirements from a stationary industrial machine.

Where applicable, review the manufacturer’s specifications for allowable loads, fasteners, and mounting arrangements. Avoid assuming that a flange with matching dimensions is automatically suitable for every operating condition.

5. Verify Standards and Compatibility

Standards can help manufacturers maintain consistent dimensions and interfaces, but the exact designation matters.

Confirm whether the required interface follows an SAE, ISO, metric, or manufacturer-specific specification. Also check whether the specification refers to motor mounting, a shaft connection, or a hydraulic fluid port.

This distinction is particularly important when sourcing replacement components from different manufacturers.

6. Review Installation and Maintenance Requirements

A suitable flange should be practical to install and inspect within the available space.

Check the manufacturer’s recommendations for fastener grades, tightening torque, installation sequence, alignment, and any sealing elements. If the equipment operates in a corrosive environment, consider whether the material or surface finish provides appropriate protection.

Following these instructions helps maintain the integrity of the mounting assembly throughout its service life.

Checkout these other resources ⬇️⬇️⬇️

What Are NPT Hydraulic Bulkhead Fittings and How Do They Work?

International Fuel Fittings: Types, Standards, and Applications

Key Components of a Hydraulic Hose Flanges: A Complete Guide

Common Hydraulic Motor Flange Problems

Hydraulic motor flange problems can affect mounting stability and contribute to damage elsewhere in the drive assembly. Identifying the cause early can help prevent more extensive repairs.

Incorrect Flange Dimensions

A flange with the wrong bolt pattern, pilot dimensions, or mounting-face geometry may not fit the motor correctly.

Forcing the parts together can damage the mounting surfaces or create alignment problems. Always verify the relevant dimensions before installation.

Motor Misalignment

Misalignment between the motor and the connected equipment can cause vibration, uneven loading, and premature wear in couplings, bearings, or other rotating components.

A centering pilot may help position the motor, but correct alignment also depends on the mating components and installation procedure.

Loose Fasteners

Fasteners that are not tightened correctly may allow unwanted movement between the flange and the mounting structure.

Incorrect tightening can also damage threads or mounting surfaces. Use the fastener specifications and torque values provided by the equipment manufacturer rather than relying on guesswork.

Cracks, Deformation, or Corrosion

Excessive loads, impact, unsuitable operating conditions, or long-term deterioration can damage a flange.

Inspect the component for visible cracks, deformation, corrosion, and damaged mounting faces. A structurally damaged flange should be evaluated and replaced when necessary rather than repaired through improvised methods.

Leakage at Sealed Interfaces

If the mounting arrangement includes an O-ring or gasket, a damaged seal or defective mating surface may lead to leakage.

However, not every motor flange is a fluid-carrying connection. When leakage occurs, identify the actual source before replacing parts. The problem may originate from a hydraulic port, fitting, hose connection, or separate seal rather than the mounting flange itself.

Hydraulic Motor Flange Installation and Maintenance Tips

Correct installation and regular inspection help keep a hydraulic motor mounting assembly in good condition.

Before installation, clean the mounting surfaces and check for burrs, dirt, corrosion, and other damage. Confirm that the flange matches the motor and supporting structure, including the bolt pattern and any locating features.

Install the specified fasteners and tighten them according to the manufacturer’s recommended sequence and torque. Do not use the fasteners to pull incompatible components into position.

After assembly, check the motor’s alignment and confirm that connected shafts or couplings operate according to the equipment requirements. If the flange design includes a seal, inspect the sealing elements and mating surfaces before putting the equipment into service.

During routine maintenance, look for loose fasteners, unusual vibration, visible cracks, corrosion, and signs of movement around the mounting interface. Investigate changes in operating noise or alignment instead of assuming that the flange is the only possible cause.

For critical or heavy-duty equipment, follow the manufacturer’s inspection schedule and replacement recommendations.

Frequently Asked Questions

1. What does a hydraulic motor flange do?

A hydraulic motor flange provides a mounting interface that secures a hydraulic motor to a compatible machine, gearbox, or support structure. It helps maintain positioning and supports the transfer of mechanical loads during operation.

2. Are hydraulic motor flanges interchangeable?

Not always. Flanges may look similar but have different bolt patterns, pilot dimensions, mounting-face geometry, or load requirements. Compatibility should be confirmed using the motor specifications or technical drawings.

3. What materials are used to manufacture hydraulic motor flanges?

Common materials include steel, cast iron, and aluminum. The choice depends on the design, mechanical loads, operating environment, weight requirements, and manufacturer specifications.

4. How can I identify the correct hydraulic motor flange size?

Check the motor model and technical documentation first. Then verify the relevant dimensions, including bolt-hole spacing, hole diameter, flange thickness, mounting-face geometry, and pilot dimensions where applicable.

5. Can a damaged hydraulic motor flange affect equipment performance?

Yes. A damaged or incorrectly mounted flange can compromise mounting stability and alignment, potentially contributing to vibration, uneven mechanical loading, and premature wear. Inspect damaged components and replace them when required by the manufacturer’s recommendations.

Conclusion

A hydraulic motor flange provides the mounting interface needed to secure a hydraulic motor to compatible equipment. It helps maintain motor positioning, transfer mechanical loads, and support a stable installation. Although it may appear to be a simple component, its dimensions and mounting design can have a meaningful effect on equipment reliability.

When selecting a hydraulic motor flange, confirm the motor model, mounting pattern, pilot dimensions, material requirements, and applicable specifications. Proper installation and regular inspection are equally important for preventing mounting problems and maintaining dependable operation.

For equipment manufacturers, maintenance teams, and hydraulic component buyers, choosing a compatible flange is a practical step toward building and maintaining reliable hydraulic machinery.
