Flanges play a vital role in piping systems by connecting pipes, valves, pumps, and other equipment to form a complete, leak-proof network. They allow for easier assembly, disassembly, inspection, and maintenance of pipelines, an essential feature in industries handling fluids and gases under varying pressure and temperature conditions.
In high-pressure and high-temperature environments, maintaining secure, leak-free connections is critical for both operational efficiency and safety. This is where Ring Type Joint (RTJ) flanges come into play. Designed for demanding applications, RTJ flanges provide a strong metal-to-metal seal that prevents leakage even under extreme conditions.
This article explores ASME B16.5 RTJ flanges in detail, covering their design, materials, dimensional standards, and applications, to help engineers, procurement professionals, and plant operators understand their specifications and importance.

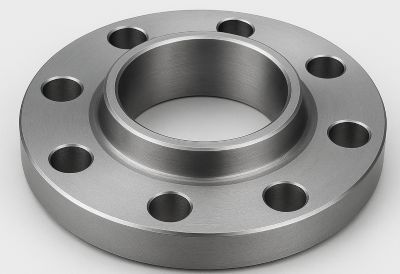

What is a Ring Type Joint (RTJ) Flange?
A Ring Type Joint (RTJ) flange is a precision-engineered flange that uses a metallic ring gasket compressed into a machined groove on the flange face to create a metal-to-metal seal. Unlike other flange types that rely on softer materials for sealing, RTJ flanges achieve a durable and leak-proof connection ideal for high-pressure and high-temperature service.
How the Sealing Mechanism Works
When the flange bolts are tightened, the metallic gasket (usually oval or octagonal in shape) deforms slightly to fill the groove, forming a tight mechanical seal between the flanges. This design minimizes gasket movement and ensures excellent sealing integrity.
RTJ Gasket Types
➡️ R-Type – The most common, available in oval and octagonal shapes.
➡️ RX-Type – Self-sealing and interchangeable with R-Type grooves.
➡️ BX-Type – Designed for higher pressure classes, typically used in API flanges.
Common Industries
RTJ flanges are widely used in:
➡️ Oil & Gas
➡️ Petrochemical and Refining
➡️ Offshore and Subsea Operations
➡️ Power Generation Plants
Overview of ASME B16.5 Standard
The ASME B16.5 standard, published by the American Society of Mechanical Engineers (ASME), specifies the dimensions, tolerances, materials, pressure ratings, and marking requirements for pipe flanges and flanged fittings.
Scope and Coverage
➡️ Covers pressure classes Class 150 to Class 2500.
➡️ Applies to flange types such as weld neck, slip-on, socket weld, threaded, lap joint, and blind flanges.
Why Compliance Matters
Compliance with ASME B16.5 ensures:
➡️ Interchangeability between manufacturers.
➡️ Safety and reliability under specified pressure and temperature limits.
➡️ Global acceptance for engineering and procurement standards.
ASME B16.5 works in conjunction with other standards such as ASME B16.47 (large diameter flanges) and ASME B16.36 (orifice flanges).
Design and Features of RTJ Flanges
Key Design Characteristics
1. Machined Groove: Precisely cut into the flange face to seat the metallic gasket.
2. Metal-to-Metal Seal: Raised surfaces ensure a tight and durable contact.
3. Tight Tolerances: Critical for ensuring gasket compatibility and preventing leaks.
Common RTJ Face Types
1. R-Type Groove: For standard applications.
2. RX-Type Groove: For self-energizing seals.
3. BX-Type Groove: For ultra-high-pressure systems.
Advantages
➡️ Excellent performance in high-pressure and high-temperature conditions.
➡️ Resistant to vibration, thermal cycling, and mechanical shock.
➡️ Superior sealing compared to Raised Face or Flat Face flanges.
Materials Used for RTJ Flanges
Material selection is crucial to ensure compatibility with process fluids, temperatures, and pressures.
Common ASME B16.5 Materials
1. Carbon Steel: ASTM A105, A350 LF2
2. Stainless Steel: ASTM A182 F304, F316, F321, F347
3. Alloy Steel: ASTM A182 F5, F9, F11, F22
4. Duplex & Super Duplex Steel: UNS S31803 (2205), UNS S32750 (2507)
5. Nickel Alloys: Inconel, Monel, Hastelloy, etc.
Testing & Certification
➡️ NACE Compliance for corrosion resistance.
➡️ PMI (Positive Material Identification) for alloy verification.
➡️ Mill Test Certificates (MTCs) per EN 10204 3.1 or 3.2 standards.
Dimensional Standards and Pressure Ratings
The dimensions and tolerances of RTJ flanges are defined in ASME B16.5, ensuring uniformity across manufacturers.
Dimensional Overview
1. Nominal Pipe Sizes (NPS): ½” to 24”
2. Pressure Classes: 150, 300, 600, 900, 1500, and 2500
3. Key Parameters: Bolt circle diameter, bolt hole count, flange thickness, and groove dimensions
Pressure-Temperature Ratings
Each class corresponds to a maximum allowable pressure for a given temperature range. RTJ flanges are typically used in higher classes (600 and above).
Tolerance & Compatibility
Machining accuracy is essential for proper gasket fit. Always ensure the gasket type matches the groove dimensions (R, RX, or BX).
Applications and Industries
Common Uses
➡️ High-pressure pipelines for oil and gas transmission
➡️ Refinery and petrochemical process lines
➡️ Subsea and offshore installations
➡️ High-temperature steam and power generation systems
Key Benefits
➡️ Exceptional strength and durability
➡️ Superior leak-tight performance
➡️ Reliable long-term sealing integrity
Installation and Maintenance Tips
Proper installation is vital to maintain the sealing integrity of RTJ flanges.
Best Practices
➡️ Align flanges carefully to prevent gasket damage.
➡️ Use the correct gasket type and hardness for the application.
➡️ Apply even bolt torque in a crisscross pattern for uniform pressure distribution.
Common Mistakes to Avoid
➡️ Reusing deformed gaskets.
➡️ Over-torquing bolts, which can damage the groove.
➡️ Using incompatible gasket types for specific groove designs.
Maintenance
➡️ Regular inspection for wear, corrosion, or groove damage.
➡️ Replace gaskets during major disassembly or maintenance shutdowns.
Advantages of ASME B16.5 RTJ Flanges
1. Leak-Proof Performance: Ideal for extreme pressures and temperatures.
2. High Vibration Resistance: Stable under mechanical and thermal stress.
3. Standardization: Ensures interchangeability across global suppliers.
4. Durability: Long service life with minimal maintenance requirements.
FAQs
Q1: What is the difference between RTJ and Raised Face flanges?
RTJ flanges use a metal ring gasket in a machined groove for sealing, while Raised Face flanges rely on a flat gasket compressed between smooth surfaces.
Q2: What is the maximum pressure rating for RTJ flanges?
RTJ flanges can handle up to Class 2500, depending on the material and temperature conditions.
Q3: Can RTJ flanges be reused?
The flanges themselves can be reused if undamaged, but gaskets should always be replaced after disassembly.
Conclusion
ASME B16.5 Ring Type Joint (RTJ) flanges are engineered for the most demanding applications where safety, reliability, and performance are non-negotiable. Their robust design, precise machining, and superior sealing capabilities make them indispensable in industries like oil & gas, petrochemical, and power generation.
To ensure optimal performance, always select ASME-compliant flanges made from suitable materials, and follow proper installation practices.
Consult with a certified flange manufacturer or supplier to source high-quality, ASME B16.5 RTJ flanges for your next project.
