Hydraulic systems power everything from construction machinery and agricultural equipment to aerospace applications. At their core, these systems rely on fluid pressure to transfer energy efficiently. For them to work reliably, every connection must remain leak-free—even under extreme pressure.
That’s where hydraulic O-Ring Boss (ORB) plugs come into play. They provide a secure, high-pressure seal that ensures both safety and performance in demanding environments.

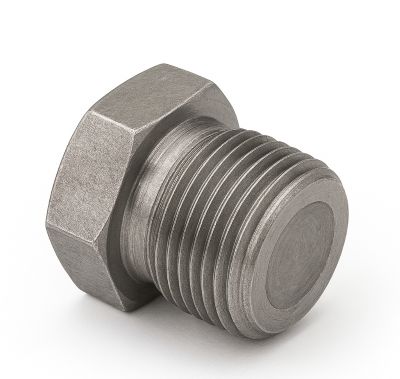

What is a Hydraulic O-Ring Boss Plug?
A hydraulic O-Ring Boss plug is a specialized sealing component designed to close off unused hydraulic ports or block fluid passages within a system.
Unlike standard plugs that rely on tapered threads (like NPT), ORB plugs feature straight threads paired with an O-ring that compresses against a flat sealing surface. This combination creates a tight, reliable seal capable of withstanding high pressures without the need for sealants or tape.
Key components of an ORB plug include:
➡️ Threads – straight (parallel) threads that provide mechanical engagement.
➡️ O-ring – the sealing element that compresses to prevent leaks.
➡️ Sealing surface – a machined face against which the O-ring seals.
This design differentiates ORB plugs from NPT (tapered thread) plugs, which seal by thread interference, or JIC fittings, which rely on a 37° flare. ORB plugs are generally more reliable under high-pressure conditions.
Benefits of Using an O-Ring Boss Plug
Choosing ORB plugs offers several advantages over other hydraulic sealing methods:
1. Leak-proof sealing – the O-ring provides a positive seal even under high pressure.
2. Resistance to vibration and shock – ideal for mobile equipment and heavy-duty machinery.
3. Easy installation and removal – no need for thread sealant or excessive tightening.
4. Longer service life – less risk of thread galling, cracking, or fatigue compared to tapered-thread alternatives.
Common Applications
ORB plugs are widely used across industries that demand dependable hydraulic sealing:
➡️ Industrial hydraulic machinery – presses, lifts, and automation equipment.
➡️ Agricultural equipment – tractors, harvesters, and sprayers.
➡️ Construction and heavy-duty vehicles – excavators, loaders, and cranes.
➡️ Aerospace and defense systems – high-performance hydraulics in aircraft and military vehicles.
➡️ Oil and gas hydraulics – offshore rigs, drilling equipment, and refineries.
Material Options and Specifications
Selecting the right material ensures both performance and durability:
➡️ Steel – strong and cost-effective, widely used in heavy machinery.
➡️ Stainless steel – excellent corrosion resistance, ideal for marine or chemical exposure.
➡️ Brass – good corrosion resistance and machinability, often used in lower-pressure applications.
Other considerations include:
➡️ Corrosion resistance – crucial for outdoor or marine environments.
➡️ Pressure ratings – typically conforming to SAE J1926 standards.
➡️ Temperature ranges – dependent on both material and O-ring selection.
➡️ Compliance – many ORB plugs meet SAE and ISO specifications for hydraulic fittings.
How to Select the Right Hydraulic O-Ring Boss Plug
When choosing an ORB plug, consider:
➡️ Size and thread type – match the plug precisely to the port dimensions.
➡️ Pressure requirements – ensure the plug is rated for your system’s operating pressure.
➡️ Fluid compatibility – check O-ring material against the hydraulic fluid used.
➡️ Environmental conditions – exposure to extreme heat, cold, or corrosive environments may dictate material and seal choice.
Installation Tips
Proper installation is key to ensuring a long-lasting seal:
1. Apply proper torque – overtightening can damage threads or crush the O-ring.
2. Select the right O-ring material – Buna-N for general use, Viton for high temperature or aggressive fluids.
3. Avoid over-tightening – ORB plugs seal with the O-ring, not excessive torque.
4. Inspect regularly – check for O-ring wear or damage during maintenance.
Common Issues and Troubleshooting
Even with their robust design, ORB plugs can encounter issues:
➡️ Leaks due to damaged O-rings – replace with the correct size and material.
➡️ Cross-threading during installation – always start threading by hand to ensure alignment.
➡️ Material incompatibility – verify that plug and seal materials are suitable for system fluids.
➡️ Prevention tip: always keep spare O-rings and check threads before installation.
Why Choose High-Quality ORB Plugs
Investing in high-quality plugs delivers long-term benefits:
➡️ Improved reliability – reduces risk of hydraulic failure.
➡️ Lower maintenance costs – fewer leaks mean less downtime.
➡️ Enhanced safety – prevents hazardous fluid leaks in high-pressure environments.
FAQs
Q1: What is the difference between O-Ring Boss and NPT?
ORB fittings use straight threads with an O-ring for sealing, while NPT fittings use tapered threads that rely on thread deformation and sealant. ORB is more reliable under high pressure.
Q2: Is SAE the same as O-Ring Boss?
Not exactly. SAE refers to standards developed by the Society of Automotive Engineers. ORB fittings are defined under SAE J1926 standards, but SAE covers a wide range of hydraulic connections.
Conclusion
Hydraulic O-Ring Boss plugs are a proven solution for high-pressure sealing, offering leak-proof performance, durability, and ease of installation. Choosing the right plug, based on size, material, and operating conditions, ensures both efficiency and safety in hydraulic systems.
Explore our range of high-pressure hydraulic ORB plugs for reliable sealing solutions.
