A magnetic pipe plug may be a small component, but it plays a big role in protecting your machinery. Found in hydraulic systems, lubrication setups, and engines, it serves as a powerful line of defense against harmful metal particles circulating in fluids.
Metal debris can come from normal wear, friction, or even manufacturing residue. If left unchecked, these tiny fragments can damage pumps, bearings, and seals, leading to costly downtime and repairs. Magnetic pipe plugs help by trapping these particles before they cause harm, keeping your system cleaner and running longer.
What is a Magnetic Pipe Plug?

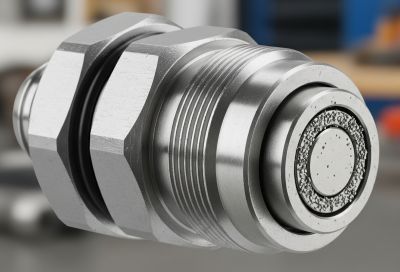

A magnetic pipe plug is a threaded plug fitted with a strong magnet that attracts and captures ferrous (iron-based) particles from oil or hydraulic fluids.
Basic Structure:
➡️ A threaded body that screws into a port or drain hole.
➡️ An embedded magnet that attracts metal debris.
Materials Used:
➡️ High-grade steel or stainless steel for durability.
➡️ Rare-earth or ceramic magnets for powerful attraction.
Magnetic vs. Non-Magnetic Pipe Plugs:
➡️ Magnetic plugs actively capture metallic particles.
➡️ Non-magnetic plugs simply act as a seal without contamination control.
How Magnetic Pipe Plugs Work
Magnetic Attraction to Metal Particles: When fluid flows past the plug, the magnet pulls in tiny steel or iron particles suspended in the oil.
Contamination Prevention: By trapping these particles, the plug stops them from recirculating and damaging sensitive components.
Step-by-Step Process:
1. Fluid containing microscopic metal debris moves past the magnetic plug.
2. Magnet attracts and holds onto ferrous particles.
3. Clean fluid continues circulating through the system.
4. During maintenance, the plug is removed, and debris is cleaned off.
Why Metal Debris is a Threat to Your Equipment
Sources of Debris:
➡️ Wear from gears, bearings, and moving parts.
➡️ Friction during operation.
➡️ Machining and manufacturing residue.
Potential Damage:
➡️ Scoring and scratching of pumps, valves, and seals.
➡️ Reduced efficiency in hydraulic and lubrication systems.
➡️ Blockages in small fluid passages.
Accelerated Wear: Even tiny particles can act like abrasive sand, wearing down components faster and leading to unexpected failures.
Key Benefits of Using Magnetic Pipe Plugs
➡️ Prolongs Equipment Life: Prevents abrasive particles from circulating.
➡️ Reduces Maintenance Frequency: Systems stay cleaner for longer.
➡️ Improves Efficiency: Reduced contamination means smoother operation.
➡️ Saves on Repairs: Avoids costly part replacements and downtime.
Common Applications of Magnetic Pipe Plugs
➡️ Hydraulic Systems: Keeps hydraulic oil free from wear particles.
➡️ Engine Oil Pans: Catches metal shavings from engine wear.
➡️ Gearboxes & Transmissions: Protects gears and bearings from contamination.
➡️ Industrial Lubrication Systems: Maintains clean oil for smooth machinery operation.
➡️ Marine & Automotive Engines: Extends service life in harsh environments.
How to Choose the Right Magnetic Pipe Plug
1. Size & Thread Type: Must match your equipment’s specifications.
2. Magnet Strength & Material: Choose rare-earth magnets for maximum pull strength.
3. Temperature & Pressure Resistance: Ensure compatibility with operating conditions.
4. Corrosion Resistance: Stainless steel options for harsh or marine environments.
Installation and Maintenance Tips
➡️ Installation: Thread into the designated port, ensuring a proper seal without overtightening.
➡️ Inspection: Check during routine oil or fluid changes.
➡️ Cleaning: Wipe off collected debris with a clean cloth before reinstallation.
FAQs
How often should I clean my magnetic pipe plug?
Check and clean it every time you change your system’s oil or fluid.
Can it catch non-metallic debris?
No—magnets only attract ferrous particles. Non-metallic contaminants require filtration.
Is it reusable?
Yes, as long as it’s in good condition and the magnet retains its strength.
Will it work with all fluids?
Yes, it works with most oil-based and hydraulic fluids.
Conclusion
Metal debris might be small, but its damage can be big. A magnetic pipe plug offers a simple, affordable, and highly effective way to keep hydraulic, lubrication, and engine systems free from harmful particles.
Regular maintenance, cleaning, and using the right plug for your application will help ensure smooth operation, fewer breakdowns, and longer equipment life.
Protect your machinery today, invest in a high-quality magnetic pipe plug and keep your systems running at their best.
