What Are JIC Compression Fittings and How Do They Work?

Hydraulic systems depend on strong, reliable, and leak-free connections, and that’s exactly what JIC compression fittings are designed to deliver. These fittings have become an industry standard for creating durable metal-to-metal seals in fluid power systems.

From aerospace and automotive to agriculture and heavy equipment, JIC fittings are trusted wherever precision and pressure integrity are critical.

In this article, we’ll explore what JIC compression fittings are, how they work, and why they’re trusted across industries.

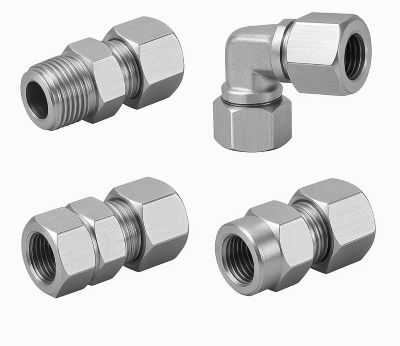

What Are JIC Compression Fittings?

The term JIC stands for Joint Industry Council, a standard developed to ensure compatibility and quality across manufacturers. JIC compression fittings are mechanical fittings designed to provide metal-to-metal sealing using a 37-degree flare on the tube end.

These fittings are engineered for high-performance hydraulic and fluid applications that demand strength, precision, and reliability.

A typical JIC compression fitting is made up of three essential components:

1. Nut – Secures the fitting connection by tightening over the sleeve and fitting body.

2. Sleeve (Ferrule) – Grips the tube and ensures proper alignment and sealing.

3. Body – Houses the connection point, providing the base structure for the fitting.

JIC fittings are commonly manufactured from stainless steel, brass, or carbon steel, depending on the application requirements and the type of fluid being conveyed.

How Do JIC Compression Fittings Work?

The secret behind JIC compression fittings lies in their 37° flare design, which allows a tight, leak-free, metal-to-metal seal between the flared tube and the fitting body.

Here’s how the connection works step by step:

1. Tube Preparation: The tube is cut cleanly and flared to a 37-degree angle using a precision flaring tool.

2. Assembly: The nut and sleeve are placed over the flared end of the tube.

3. Mating: The flared tube end is aligned with the cone seat inside the fitting body.

4. Tightening: As the nut is tightened, it compresses the sleeve, forcing the flared tube against the fitting’s cone seat to form a strong, vibration-resistant seal.

This metal-to-metal contact provides superior strength and durability, even in high-pressure, high-vibration hydraulic environments, making JIC fittings ideal for demanding applications.

Advantages of Using JIC Compression Fittings

JIC compression fittings offer a range of benefits that make them one of the most widely used connection types in the fluid power industry:

Leak-Free Performance: The precision flare ensures a consistent, secure seal without the need for additional sealants.

Reusability: Components can be disassembled and reused multiple times without compromising integrity.

Ease of Installation: No special tools are required, just proper torque and cleanliness.

Wide Compatibility: Suitable for various tubing materials, including steel, copper, and aluminum.

Resistance to Vibration and Temperature: The design maintains sealing performance even under heavy vibration and temperature fluctuations.

Applications of JIC Compression Fittings

Thanks to their reliability and versatility, JIC compression fittings are used across numerous industries, including:

➡️ Aerospace and Defense Systems – Hydraulic actuation and control systems.

➡️ Agricultural and Construction Equipment – Hydraulic cylinders and power steering.

➡️ Automotive Systems – Fuel, brake, and transmission lines.

➡️ Industrial Fluid Transfer Systems – Machinery, pumps, and process lines.

➡️ Marine and Offshore Applications – Corrosion-resistant hydraulic lines and controls.

JIC vs. Other Fitting Types

When choosing fittings, understanding the differences between types is essential:

➡️ JIC vs. NPT (National Pipe Thread): JIC fittings use a flare seal, while NPT fittings rely on thread interference and often require sealants or tape to prevent leaks.

➡️ JIC vs. ORFS (O-Ring Face Seal): JIC fittings use a metal-to-metal seal, whereas ORFS fittings use an elastomeric O-ring, offering better performance in extreme vibration but less reusability.

Comparison Chart: JIC vs. NPT vs. ORFS Fittings

Why many engineers prefer JIC? It offers the perfect balance between cost, reliability, and ease of maintenance.

Common Mistakes and Installation Tips

Even with a reliable fitting design, proper installation is key to performance. Avoid these common mistakes:

➡️ Over-Tightening or Under-Tightening: Can lead to damaged threads or poor sealing.

➡️ Using Damaged or Poorly Flared Tubing: Always ensure clean cuts and accurate flares.

➡️ Mixing Incompatible Materials: Can cause galvanic corrosion or leakage.

➡️ Skipping Inspection: Always clean and inspect fittings before assembly.

➡️ Ignoring Torque Specs: Follow manufacturer torque recommendations for a perfect seal every time.

How to Choose the Right JIC Compression Fittings

Before selecting a JIC fitting, consider the following factors:

1. Material Compatibility: Ensure the fitting material suits the fluid and tubing type.

2. Pressure Rating: Choose a fitting that matches or exceeds system pressure requirements.

3. Size and Thread Type: Confirm proper sizing (SAE, metric, or fractional).

4. Operating Temperature and Environment: Select corrosion-resistant materials for harsh or marine environments.

Pro Tip: Always source JIC compression fittings from reputable manufacturers like Sannke to guarantee quality and consistent performance. Don’t hesitate to contact Sannke and request a quote.

Conclusion

JIC compression fittings are an essential component of modern hydraulic and fluid power systems. Their 37° flare design, metal-to-metal sealing, and proven durability make them one of the most trusted choices for engineers and technicians worldwide.

Whether you’re designing a new hydraulic system or upgrading an existing one, JIC compression fittings remain one of the most reliable, reusable, and high-performance solutions for fluid connections.

FAQs

1. What does JIC stand for?
JIC stands for Joint Industry Council, the organization that established the standard for these types of fittings.

2. Are JIC compression fittings reusable?
Yes. As long as the components are undamaged, JIC fittings can be disassembled and reused multiple times.

3. What angle are JIC fittings?
JIC fittings feature a 37-degree flare that provides a precise metal-to-metal seal.

4. Can JIC fittings be used with brake lines?
Yes, JIC fittings are commonly used in automotive and hydraulic brake systems, provided they are properly matched to the tubing material and pressure rating.
