Hydraulic cylinders are critical components in fluid power systems, enabling the transfer of energy through pressurized fluid to perform mechanical tasks. From lifting heavy loads to powering industrial machinery, these cylinders serve as the muscle in countless machines and equipment.
While much attention is often placed on the piston and cylinder body, the end cap plays an equally important role in ensuring the hydraulic cylinder functions effectively and reliably. Acting as both a structural support and a pressure-containing barrier, the end cap is crucial for maintaining the performance and safety of the system.
This guide aims to help readers understand the different types of hydraulic cylinder end caps, their construction, functions, applications, and how to choose the right one for specific needs.

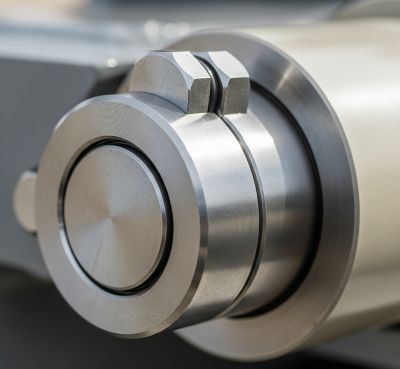

What Is a Hydraulic Cylinder End Cap?
A hydraulic cylinder end cap is a mechanical component located at either end of the hydraulic cylinder barrel. Typically, one end cap is fixed, while the other may incorporate the rod and act as a closure and support structure.
Functionally, end caps serve multiple purposes:
1. They seal the ends of the cylinder, preventing fluid leakage.
2. They help align internal components like the piston and rod.
3. They often house ports or fittings for hydraulic fluid flow.
End caps are essential for maintaining pressure within the cylinder and providing structural integrity under high loads and dynamic forces.
Key Functions of End Caps
Hydraulic cylinder end caps are designed to fulfill several key functions:
➡️ Sealing the Cylinder Barrel: They form a pressure-tight seal at the cylinder ends, preventing hydraulic fluid from escaping.
➡️ Supporting Internal Components: End caps hold the piston rod, bearings, and seals in alignment, ensuring smooth movement.
➡️ Allowing Fluid Flow Regulation: Ports or channels in the end caps facilitate the controlled flow of hydraulic fluid into and out of the cylinder.
➡️ Withstanding Pressure and Stress: They are engineered to endure high system pressures and mechanical forces during operation.
Types of Hydraulic Cylinder End Caps
Hydraulic cylinder end caps vary by design and application. A closer look at the most prevalent kinds is provided below:
A. Threaded End Cap
Features and Design: Threaded end caps screw directly into the cylinder barrel, offering a tight, secure seal.
Common Applications: Used in light to medium-duty cylinders, often found in compact systems or mobile applications.
Pros:
➡️ Easy to install
➡️ Cost-effective for small cylinders
Cons:
➡️ Limited to lower pressure systems
➡️ Harder to remove for maintenance
B. Welded End Cap
Characteristics: Permanently attached to the cylinder barrel via welding, offering robust strength and pressure resistance.
When and Why It’s Used: Ideal for high-pressure and space-constrained applications where disassembly is infrequent.
Advantages:
➡️ High strength
➡️ Leak-proof
Limitations:
➡️ Non-serviceable
➡️ Replacement requires cutting and re-welding
C. Bolted End Cap
Construction Details: Uses bolts to attach the end cap to the cylinder barrel, allowing for easy removal.
Maintenance and Serviceability: Designed for applications that require frequent inspection and servicing.
Typical Industries: Common in heavy-duty and industrial cylinders, such as presses and large actuators.
D. Tie-Rod Cylinder End Cap
Structure and Connection: Held in place by long tie rods that span the length of the cylinder.
Benefits:
➡️ Easy to disassemble and repair
➡️ Modular construction
Industrial Use: Frequently found in manufacturing and automation systems due to their ease of maintenance.
E. Flanged End Cap
Description and Attachment Method: Features a flanged rim that is bolted to a matching flange on the cylinder barrel.
Common Uses: Suitable for high-pressure or heavy-duty environments like marine, offshore, and mining applications.
Strengths:
➡️ Excellent pressure containment
➡️ Strong mechanical connection
Weaknesses:
➡️ Bulkier design
➡️ Higher manufacturing cost
Materials Used in End Cap Construction
End caps are manufactured using materials that match the system’s mechanical and environmental demands:
1. Common Materials: Steel, cast iron, aluminum, stainless steel
2. Material Selection Criteria:
➡️ Pressure and load-bearing requirements
➡️ Temperature tolerance
➡️ Environmental exposure (e.g., corrosion, humidity)
3. Durability Considerations: For corrosive or outdoor environments, stainless steel or treated steel may be necessary to ensure long-term performance.
Factors to Consider When Choosing an End Cap Type
Selecting the right hydraulic cylinder end cap depends on several critical factors:
1. Application and Load Requirements: High-load systems need stronger end caps, such as welded or flanged types.
2. Operating Pressure and Environment: Consider pressure ratings and exposure to elements like water, chemicals, or debris.
3. Maintenance Accessibility: Systems that require frequent maintenance benefit from bolted or tie-rod designs.
4. Cost and Lifecycle: Evaluate the total cost of ownership, including initial cost, serviceability, and longevity.
Industry Applications for Various End Cap Types
Different industries have different end cap preferences based on their operational needs:
1. Mobile Equipment: Threaded and welded end caps for compact and rugged performance in construction and agriculture.
2. Industrial Machinery: Tie-rod and bolted end caps for ease of maintenance and reliability in factory environments.
3. Marine and Offshore: Flanged and corrosion-resistant end caps to withstand harsh environments and high pressures.
4. Aerospace and Automation: Precision-engineered end caps (often tie-rod or flanged) designed for tight tolerances and performance.
Maintenance and Replacement Tips
Regular inspection and timely replacement of hydraulic end caps are vital for safe and efficient operation.
Signs of Wear or Failure:
➡️ Fluid leakage
➡️ Cracks or deformation
➡️ Misalignment of the rod or piston
Inspection Procedures:
➡️ Visual checks for wear, corrosion, or cracks
➡️ Pressure testing for leaks
➡️ Verifying bolt torque (for bolted or flanged types)
Safe Replacement Guidelines:
➡️ Depressurize the system before disassembly
➡️ Use proper tools and follow manufacturer specifications
➡️ Replace seals and gaskets during end cap maintenance
FAQs
What is the cap end of a hydraulic cylinder?
It refers to the end of the cylinder opposite the rod end, typically closed and responsible for containing the pressure and aligning components.
What are the ends of a hydraulic cylinder called?
They are commonly referred to as the cap end (blind end) and the rod end (where the piston rod exits).
What are the different types of hydraulic cylinder glands?
Hydraulic cylinder glands (also called head glands) are components that house seals and bushings, usually found in the rod end cap. Types include threaded glands, bolted glands, and cartridge-style glands.
Conclusion
Understanding the various hydraulic cylinder end cap types is key to optimizing system performance, reliability, and serviceability. From simple threaded caps to heavy-duty flanged versions, each design serves a specific purpose.
By choosing the right end cap based on application, pressure, environment, and maintenance needs, you can extend the life of your hydraulic systems and ensure safe, efficient operation. For the best results, consult with hydraulic experts or trusted component suppliers when specifying or replacing cylinder components.
