Quick Reference: Hydraulic Cap and Plug Sizes by Type

Hydraulic systems are the backbone of countless industries, from heavy machinery and agricultural equipment to aviation and manufacturing. These systems rely on precise fluid control under high pressure, and even the smallest leak can compromise performance, safety, and efficiency. That’s where hydraulic caps and plugs come in.

Choosing the correct size for a cap or plug is more than a matter of convenience, it’s critical for preventing leaks, ensuring compatibility, and protecting your system from contamination or pressure loss. This article provides a quick reference guide to hydraulic cap and plug sizes by type, helping technicians, engineers, and operators select the right fit every time.

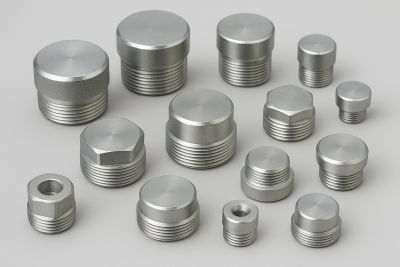

What Are Hydraulic Caps and Plugs?

Hydraulic caps and plugs are not the same, and they should not be interchanged. Caps seal the outside of a connection, while plugs seal the inside. Both play essential roles in protecting hydraulic integrity.

Hydraulic Caps are designed to seal the open end of a hydraulic hose or port. They prevent dust, debris, and moisture from entering the system when it’s not in use.

While Hydraulic Plugs block off unused ports or ends of fittings. They are especially useful when reconfiguring systems or temporarily disabling a circuit.

Why Size Matters in Hydraulic Fittings

Here are a few important things why size matters in hydraulic fittings:

➡️ Leaks and Pressure Loss: An incorrectly sized cap or plug won’t seat properly, leading to leaks that reduce efficiency and create hazards.

➡️ Compatibility Issues: Different standards (NPT, JIC, BSP, ORFS, Metric) have unique thread profiles. A mismatch can damage components.

➡️ Safety Risks: Hydraulic systems often operate at thousands of PSI. A poor seal increases the risk of burst fittings or accidents.

Hydraulic Cap and Plug Types & Size References

NPT (National Pipe Thread)

➡️ Common Uses: Widely used in North America for general-purpose hydraulic and pneumatic applications.

➡️ Sizes: Typically range from 1/8” to 2”. Examples include ¼”, ⅜”, and ½”.

➡️ How to Measure: NPT threads are tapered, so measure the outside diameter and consult a chart—nominal sizes don’t match actual OD.

JIC (Joint Industry Council)

➡️ Applications: High-pressure hydraulic systems, particularly in mobile and industrial equipment.

➡️ Sizes: Standard range from 3/16” to 2”.

➡️ Thread Angle: JIC fittings feature a 37° flare for a metal-to-metal seal.

BSP (British Standard Pipe)

➡️ Where Used: Common in Europe, Asia, and international equipment.

Types:

1. BSPT (tapered) – seals with thread wedging.

2. BSPP (parallel) – usually requires an O-ring or washer for sealing.

Sizes: Typically from 1/8” to 2”. Identification requires checking whether the thread is parallel or tapered.

ORFS (O-Ring Face Seal)

➡️ Advantages: Exceptional leak-proof performance, even under vibration.

➡️ Sizes: Common range from 3/16” to 2”.

➡️ Applications: Widely used in construction and agricultural machinery, where reliability under harsh conditions is essential.

Metric Thread

➡️ System: Uses millimeters rather than inches, often seen in European-designed equipment.

➡️ Applications: Automobiles, construction machinery, and imported hydraulic systems.

➡️ Identification Tips: Measure the thread pitch in millimeters (e.g., M18 x 1.5 means 18 mm OD with 1.5 mm pitch).

How to Identify Hydraulic Cap and Plug Sizes

These are the steps to identify the hydraulic cap and plug sizes:

Step 1: Measure the Outside Diameter (OD) – Use a caliper for precision.

Step 2: Determine Thread Pitch – Count threads per inch (TPI) for imperial, or measure millimeters between threads for metric.

Step 3: Check the Thread Angle – Common angles include 30°, 37°, 45°, or 60°. A thread gauge helps here.

Step 4: Confirm with Reference Charts – Always compare your measurements against a manufacturer’s chart.

Tools You’ll Need:

➡️ Digital caliper.

➡️ Thread pitch gauge.

➡️ Magnifying glass (for fine threads).

Common Mistakes: Measuring across worn threads, confusing tapered vs. parallel, or assuming nominal size equals actual OD.

Quick-Reference Charts

Here’s a simplified example (actual dimensions vary by standard):

Tip: Always cross-check with manufacturer specifications, as tolerances can vary.

Tips for Selecting the Right Cap or Plug

Follow these tips for selecting the right cap or plug:

➡️ Match Pressure Ratings: Never use a cap or plug rated below system pressure.

➡️ Fluid Compatibility: Ensure the material (steel, brass, stainless, plastic) matches your hydraulic fluid.

➡️ Environmental Factors: For outdoor use, consider corrosion-resistant coatings.

➡️ Keep Spares Handy: Stock commonly used sizes to minimize downtime.

Conclusion

Choosing the correct hydraulic cap or plug size is vital for system safety, efficiency, and longevity. By understanding the different types, NPT, JIC, BSP, ORFS, and Metric, you can avoid costly mistakes and keep your equipment running smoothly.

Use quick-reference charts, measure carefully, and when in doubt, consult your supplier.
