What Are Compression Union Fittings and How Do They Work?

In plumbing, HVAC, and various mechanical systems, creating secure pipe connections is one of the most important steps in ensuring long-term performance. Whether the system carries water, air, or gas, even a small leak can lead to wasted resources, property damage, and costly repairs. That’s why choosing the right type of fitting is essential. Among the various connection methods available, compression union fittings have become a popular option thanks to their simplicity, reliability, and versatility.

Compression union fittings offer an effective way to connect two sections of pipe or tubing without the need for soldering, welding, or threading, making them an excellent choice for both professional installers and DIY homeowners.

What Are Compression Union Fittings?

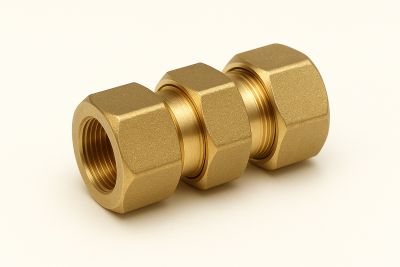

A compression union fitting is a type of mechanical fitting designed to join two pieces of pipe or tubing using pressure rather than heat or adhesives. Unlike soldered or welded joints, compression fittings rely on a combination of mechanical force and a soft metal or plastic ring (called a ferrule) to create a seal.

Their general purpose is to make strong, leak-free connections between pipes without specialized tools, making them ideal for quick repairs or installations where using a torch or welding equipment isn’t practical.

Key Components

A typical compression union fitting consists of three main parts:

➡️ Nut – The threaded component tightened to compress the joint.

➡️ Compression ring (ferrule) – A small ring, often made of brass or copper, that compresses around the pipe as the nut is tightened.

➡️ Body of the fitting – The central piece that houses the ferrule and receives the pipe ends.

➡️ Optional inserts or sleeves – Used when connecting softer plastic tubing to prevent collapse during compression.

Each component plays a critical role in forming a secure, dependable seal.

Types of Materials Used

Compression fittings are available in a range of materials, each suited to specific applications:

➡️ Brass – The most common choice for residential plumbing and general-purpose applications.

➡️ Copper – Often used with soft copper tubing.

➡️ Stainless steel – Preferred for high-pressure, corrosive, or industrial environments.

➡️ Plastic – Used primarily for low-pressure systems or where chemical resistance is needed.

Where Are Compression Union Fittings Used?

Residential Plumbing

In homes, compression fittings are commonly found in:

1. Water supply lines for sinks, toilets, and appliances

2. Shut-off valves where easy disconnection is needed

3. Repair connections to join copper or plastic pipes without soldering

They are especially useful for tight spaces or quick repairs.

Commercial & Industrial Applications

In professional environments, compression union fittings are used for:

➡️ Gas lines (when allowed by local codes)

➡️ Hydraulic systems that rely on pressure

➡️ Pneumatic systems carrying air or gases

Their ability to create strong, tight seals without heat makes them valuable in industrial settings.

Specialty Uses

Compression fittings also play roles in:

➡️ Laboratory equipment, where precise and reliable connections are essential

➡️ Marine applications, thanks to corrosion-resistant materials

➡️ HVAC systems, especially in refrigeration or chilled-water lines

How Compression Union Fittings Work

Compression union fittings work by tightening a nut that squeezes the ferrule around the pipe. As the ferrule compresses, it forms a tight grip on the pipe’s surface. This compression creates a mechanical seal capable of withstanding water, air, or gas pressure.

Step-by-Step Operating Process

1. Insert the pipe into the fitting body until it seats firmly.

2. Slide the compression ring onto the pipe.

3. Tighten the compression nut onto the fitting body.

4. As the nut tightens, the ferrule compresses and bites into the pipe surface.

5. Once fully tightened, a watertight or airtight seal is formed.

Why This Mechanism Is Effective

➡️ Mechanical grip holds the pipe securely in place.

➡️ Even distribution of pressure across the ferrule reduces risk of leaks.

➡️ No heat or special tools makes installation safer and more accessible.

Advantages of Compression Union Fittings

1. Easy to install, even for beginners

2. Ideal for quick repairs

3. No open flame required, unlike soldering

4. Perfect for tight or delicate spaces

5. Reusable in many cases (ferrule may need replacing)

6. Works with various materials, including copper, brass, and plastic

These benefits make compression fittings a go-to solution in both residential and industrial settings.

Limitations and Considerations

Despite their advantages, compression fittings have some limitations:

➡️ Not ideal for high-vibration environments unless extra support is used

➡️ Over-tightening can damage the ferrule or pipe

➡️ Pipe ends must be cut square and clean to ensure sealing

➡️ Not suitable for all gas or high-pressure systems, depending on regulations and standards

Always consult local plumbing codes before using compression fittings in gas or high-pressure applications.

How to Install a Compression Union Fitting (Brief Guide)

Step-by-Step Summary

1. Cut the pipe cleanly and squarely.

2. Slide the nut and ferrule onto the pipe.

3. Insert the pipe fully into the fitting body.

4. Tighten the nut by hand, then use two wrenches to finish tightening.

5. Check for leaks once the system is operational.

Tools Required

➡️ Two adjustable wrenches

➡️ Pipe cutter

➡️ Deburring tool (optional but recommended)

Tips for Ensuring a Proper Seal

➡️ Don’t overtighten the fitting—this can crush the ferrule.

➡️ Ensure the pipe end is free of burrs and debris.

➡️ Do not reuse old ferrules.

Common Mistakes to Avoid

➡️ Using compression fittings on bent or damaged pipes

➡️ Misaligning the pipe before tightening

➡️ Attempting to seal with tape or glue

➡️ Forcing a ferrule that doesn’t fit properly

How to Maintain and Inspect Compression Fittings

To keep compression fittings performing well:

1. Periodic Inspection

Check for moisture, rust, or discoloration that may indicate a leak.

2. When to Re-Tighten

If a minor leak develops, gently tighten the nut a quarter turn.

3. Replacing Worn Components

If tightening doesn’t fix the issue, replace the ferrule, nut, or entire fitting.

Comparison Table: Compression Union Fittings vs. Other Connection Methods

Conclusion

Compression union fittings are a versatile, reliable, and user-friendly option for connecting pipes in plumbing, HVAC, and industrial systems. By using mechanical pressure instead of heat or adhesives, they create strong, leak-free seals that are easy to install and maintain.

Whether you’re a professional plumber or a DIY homeowner, understanding how compression fittings work and when to use them can help you complete projects more efficiently and safely. Choose fittings made from the right material for your application, follow proper installation practices, and enjoy durable performance for years to come.
